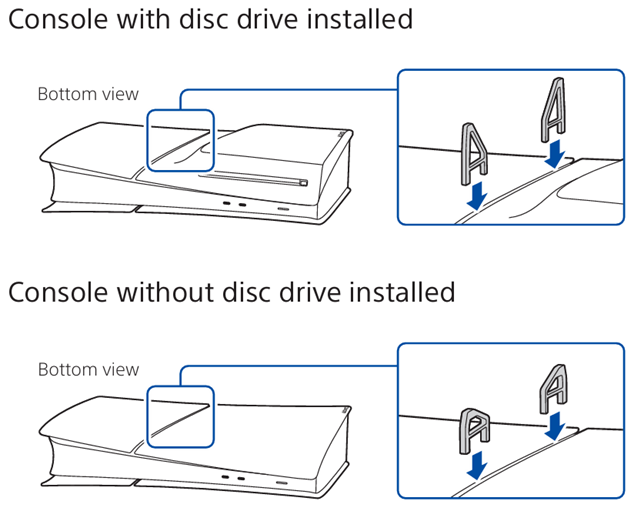

Insert the horizontal stand feet into the hole in the grooves of the PlayStation®5 console.
Always attach the feet to your PS5 console before use. Place you console on a soft cloth spread over a flat surface before attaching feet. If you want to set you PS5 console in the vertical position you’ll need to use the vertical stand (sold separately).

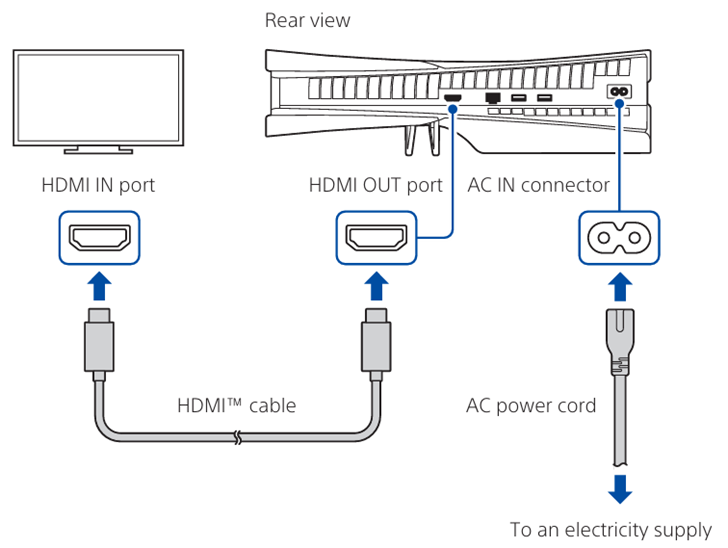

Connect the HDMI cable and the AC power cord.
Use the included cables. Make all connections before plugging the AC power cord into an electricity supply. The following illustrations all show the console with the disc drive installed.

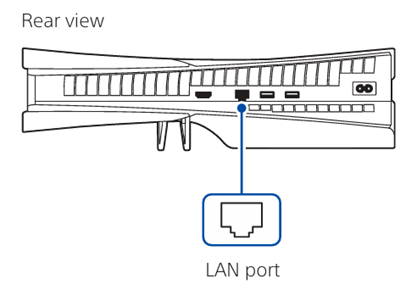

Connect the LAN cable.
For a wired connection to the internet, use a LAN cable (not included).
If you’re going to use Wi-Fi®, don’t connect a LAN cable and skip to the next step.
- Turn on your TV and set the input to HDMI.

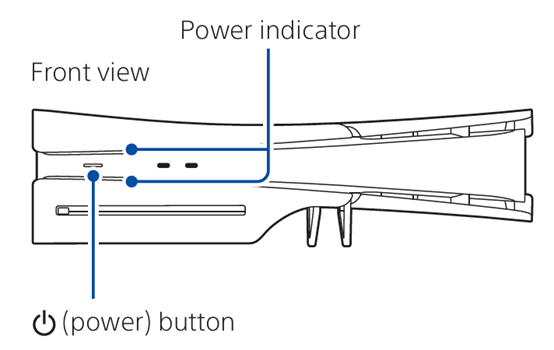

Turn on your PS5 console by pressing the power button.
The power indicator blinks blue and then turns white.
If you leave the console idle for 60 seconds after you turn it on, the screen reader turns on. You can listen to on-screen text and other important information read aloud to help you accomplish what you want to do. Screen reader is available only in certain languages.Connect your DualSense® wireless controller to your console and press the PS button.

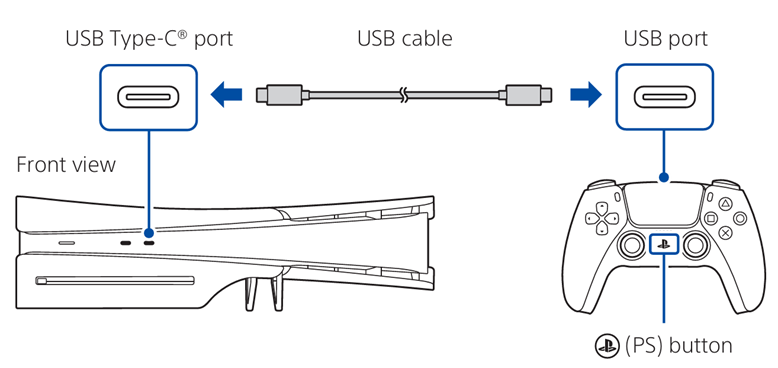

To pair your controller, connect it with a USB cable to the USB port on your console. When you press the PS button, the controller turns on.
- Follow on Screen instructions to complete setup.
To prevent fire or shock hazard, do not expose the console to rain or moisture
To prevent fire or shock hazard, do not place a container filled with liquids on top of the Console
To avoid electrical shock, do not open the console. Refer servicing to qualified personnel only.
HEALTH AND SAFETY
Before using this product, carefully read this manual and retain it for future reference. Parents and guardians of children should read this manual and make sure that children follow all safety precautions. This product has been designed with the highest concern for safety. However, any electrical device, if used improperly, has the potential for causing fire, electrical shock or personal injury. Observe all warnings, precautions, and instructions. Stop use and disconnect the AC power cord immediately if the product functions in an abnormal manner, produces unusual sounds or smells or becomes too hot to touch.
ELECTRICAL SHOCK
To avoid electrical shock, do not open the enclosure. Refer servicing to qualified personnel only.
LASER (Only for consoles with a disc drive installed)
This appliance is classified as a CLASS 1 LASER product under IEC60825-1:2014.
Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard.
MOVING FAN BLADES
Keep body parts away from fan blades.
SEIZURES INDUCED BY LIGHT STIMULATION (PHOTOSENSITIVE EPILEPSY)
If you have an epileptic condition or have had seizures, consult your doctor prior to using this console. Some individuals are sensitive to flashing or flickering lights or geometric shapes and patterns, may have an undetected epileptic condition and may experience epileptic seizures when playing videogames or watching video content.
DISCONTINUE USE IMMEDIATELY and consult your doctor if you experience any of the following health problems or symptoms when exposed to flashing or flickering lights or other light stimulation whilst playing video games or watching video content: eye soreness, altered vision, migraine, muscle twitching, convulsion or other involuntary movements, blackout, loss of awareness, confusion, or disorientation.
In addition to the above, DISCONTINUE USE IMMEDIATELY when you experience any of the following symptoms: headache, dizziness, nausea, fatigue, similar symptoms to motion sickness, or discomfort or pain in any body part such as eyes, ears, hands, arms, or feet whilst playing. If the condition persists, seek medical attention.
RADIO WAVES
Radio waves may affect electronic equipment or medical devices (for example, pacemakers), which may cause malfunctions and possible injuries.
• If you use a pacemaker or other medical device, consult your doctor or the manufacturer of your medical device before using the wireless networking feature (Bluetooth® and wireless LAN).
• Do not use the wireless networking feature in the following locations:
- Areas where wireless network use is prohibited, such as in hospitals. Abide by medical institution regulations when using the console on their premises.
- Areas near fire alarms, automatic doors and other types of automated equipment.
MAGNETS AND MEDICAL DEVICES
These products have magnets which may interfere with pacemakers, defibrillators and programmable shunt valves or other medical devices. Do not place these products close to such medical devices or persons who use such medical devices. Consult your doctor before using these products if you use such medical devices.
VOLUME LEVEL
Permanent hearing loss may occur if headsets or headphones are used at high volume. Set the volume to a safe level. Over time, increasingly loud audio may start to sound normal but can actually be damaging your hearing. If you experience ringing, discomfort in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the sooner your hearing could be affected. To protect your hearing:
• Limit the amount of time you use the headset or headphones at high volume.
• Avoid raising the volume to block out noisy surroundings
• Lower the volume if you can’t hear people speaking near you.
LITHIUM BATTERIES
Do not handle damaged or leaking lithium-ion batteries. If the internal battery fluid leaks, stop using the product immediately and contact technical support for assistance. If the fluid gets on to your clothes, skin or into your eyes, immediately rinse the affected area with clean water and consult your doctor. The battery fluid can cause blindness.
The controller contains a lithium-ion rechargeable battery.
Do not allow the battery to come into contact with fire or subject it to extreme temperatures such as in direct sunlight, in a vehicle exposed to the sun or near a heat source. Never attempt to open, crush, heat, or set fire to the controller or the battery .Do not leave the battery charging for a prolonged period of time when the controller is not in use.
YOUNG CHILDREN INJURIES
Keep the product out of the reach of young children. Young children may swallow small parts, pull on cables and cause the console or the controller to fall, or wrap the cables around themselves, which may inflict injury or cause an accident or a malfunction.
NEVER DISASSEMBLE OR MODIFY THE PRODUCT OR ACCESSORIES
There is a risk of fire, electric shock, or injury.
Use of the AC power cord
Stop use, unplug the AC power cord from the electricity supply and disconnect any other cables immediately if the device functions in an abnormal manner, produces unusual sounds or smells or becomes too hot to touch.
Well-lit area
Use in a well-lit area and keep a safe distance from the TV screen.
Taking breaks
• Avoid prolonged continuous use of this product. Generally, we recommend that you take 15-minute breaks for every hour of play.
• Avoid playing when you are tired or need sleep.
• Stop using the console immediately if you begin to feel tired or if you experience discomfort or pain in your hands or arms while operating the controller. If the condition persists, consult a doctor.
• If you experience any of the following health problems, discontinue use of the console immediately. If symptoms persist, consult a doctor.
- Dizziness, nausea, fatigue or symptoms similar to motion sickness
- Discomfort or pain in a part of the body, such as eyes, ears, hands or arms
Vibration function
• If the controller is sitting on a flat surface, the vibration of the controller during gameplay may cause it to fall, leading to injury or malfunction.
• Do not use the vibration or trigger effect function if you have any ailment or injury to body parts such as the bones, joints, or muscles of the hand or arm or that may be affected by this vibration function. To disable the features, select Settings > Accessories from the home screen.
Static shock
When using a headset or headphones in particularly dry air conditions, you may sometimes experience a small and quick (static) shock on your ears. This is a result of static electricity accumulated in the body, and is not a malfunction of your headset or headphones. This effect could be reduced by wearing clothes made from materials that do not easily generate static shock.
Moisture condensation
If the console is brought directly from a cold location to a warm one, moisture may condense inside the console. Should this occur, the console may not operate properly. In this case, turn off and unplug the console until the moisture evaporates (this may take several hours). If the console still does not operate properly, contact the appropriate PlayStation® customer service helpline.
High temperature message
If the console becomes too hot, you will see a notification message on your screen. Continued use while the message displays may lead to the console becoming non-operational. If you see the message, turn off the console and wait until it cools down. After the console cools down, move it to a well-ventilated location that is not subject to high temperatures. Check to make sure the console vents are not blocked, and if you installed an M.2 SSD to the console, be sure that the heat-dissipation parts haven’t detached from the M.2 SSD.
Motion sensor
When using the motion sensor function of the controller, be cautious of the following points. If the controller hits a person or object, it may cause accidental injury or damage.
• Before using the motion sensor function, make sure you have enough space to move around.
• Firmly grip the controller to prevent it from slipping out of your grasp and causing damage or injury.
• If using a controller that is connected to the PS5® console with a USB cable, make sure there is enough space for the cable so that the cable will not hit a person or object.
Light bar
Do not stare at the light bar on the controller when it is blinking. Stop using the controller immediately if you experience any discomfort or pain.
Liquid, dust, smoke, steam, and heat
• Always ensure the product and its connectors are free of liquid, excess dust and small particles.
• Do not leave the product in the following areas during use, storage, or transportation.
- Areas exposed to smoke or steam
- Areas with high humidity, dust, or cigarette smoke
- Areas near heating appliances, areas exposed to direct sunlight, or areas that retain heat
HEALTH AND SAFETY
AC power cord and cables
• Do not use the cord or cables if they are damaged or modified.
• Do not use a power cord other than the included AC power cord. The AC power cord is designed specifically for use with this console only, and should not be used with other electrical devices.
• Do not touch the plug or connector with wet hands.
• Do not walk on the cord or cables or pinch them, particularly at plugs, receptacles, connectors and where they exit from the console.
• Do not expose the cord or cables to heat or place them near heating appliances.
• Do not place heavy items on the cord or cables.
• Do not pull or bend the cord or cables with excessive force.
• Do not connect the AC power cord to a voltage transformer or inverter. Connecting the cord to a voltage transformer for overseas travel or an inverter for use in a vehicle may cause it to heat up in the console and may cause burns or a malfunction.
• Before connecting or plugging in the AC power cord, check that there is no dust or small particles in or on the plug or connectors or the AC IN connector on the console.
• Unplug the cord and cables if you want to clean or move your console or do not intend to use it for an extended period of time. When disconnecting, hold the cord by the plug and pull straight out of the socket. Never pull by the cord and do not pull out at an angle.
Set up and handling
• Do not use the console in a closed cabinet or other locations where heat may build up. Doing so may cause the console to overheat and may lead to fire, injury or malfunction.
• Do not touch product during an electrical storm.
• Do not expose the console, accessories or battery to high temperatures, high humidity or direct sunlight during operation, transportation and storage.
• Do not place the console or accessories on surfaces that are unstable, tilted or subject to vibration.
• Use the included horizontal stand feet to set the console in the horizontal position. If you do not use the feet and set the console in a position other than instructed, there is a risk of injury, damage, or malfunction. For instructions on attaching the feet, please see the Quick Start Guide. To set the console in the vertical position, you’ll need to use the vertical stand.
• When setting up or carrying the console, be careful to securely hold the main body of the console. Do not hold, carry, or lift the console by only the cover; doing so could cause the cover to detach and the console to fall, leading to potential injury or damage.
• Do not move the console or adjust its position when the power indicator is lit or blinking. Data may be lost or corrupted, or the console may be damaged.
• Do not stand on or put objects on the console, and do not stack the console with other devices
• Do not place the console and connected accessories on the floor or in a place where they may cause someone to trip or stumble.
• Do not touch the connectors of the console or accessories.
• Do not allow bodily contact with the console or air from the console vents for an extended period of time while in use. Extended contact under these conditions may cause low-temperature burns.
• The console should be installed and operated with a minimum distance of 20 cm away from your body.
• Do not use the product near water.
• Do not move or change the position of the console with a disc inserted. The vibration may result in scratching of the disc or the console.
Power off
• Do not turn off the console while data is being saved on or loaded from the SSD or USB drives.
• Do not remove the AC power cord from the electricity supply until the power indicator has turned off. If you disconnect the AC power cord while the power indicator is lit or blinking, data may be lost or corrupted, or the console may be damaged.
Use of the cover
Do not use the console without the cover. Doing so may cause fire, electrical shock, or malfunction. Do not remove the cover of the console immediately after use. The main unit of your PS5 console may still be hot immediately after use, and continued handling with the cover off may cause burns. If you need to remove the cover, turn off your PS5 console, unplug the AC power cord and cables, and wait for it to cool down.
Compatibility
Controllers intended for use with PlayStation®, PlayStation®2, and PlayStation®3 consoles, such as the analogue controllers (DUALSHOCK® and DUALSHOCK®2) and the DUALSHOCK®3 wireless controller, are not compatible with the PS5 console. The DUALSHOCK®4 wireless controller is compatible with PlayStation®4 format software on the PS5 console, but not with PS5 format software on the PS5 console.
Safe use for children
Parents are encouraged to monitor children in online activities to ensure safe and responsible internet usage. Refer to playstation.com/safety for further details.
