M.2 SSD is storage that uses flash memory. Install a commercially available M.2 SSD in your PS5 console for more storage for your game and app data.

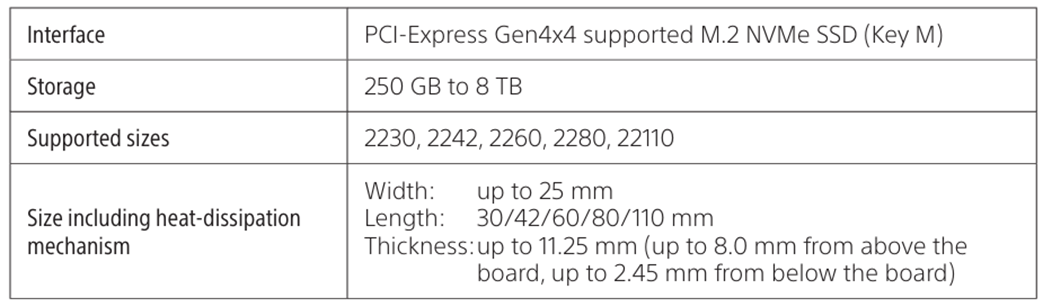

Types of M.2 SSD You can use an M.2 SSD with the following specifications:

Notices

Both single-sided devices and double-sided devices are supported.
M.2 SATA SSD is not supported.
Allocation of host memory to HMB (Host Memory Buffer) supported devices is not supported.
Carefully review drive specifications prior to purchase and contact the vendor or manufacturer if you need further information. SIE cannot guarantee that all M.2 SSD devices meeting the specifications above will work with your console and assumes no responsibility for the selection, performance or use of third-party products.

About M.2 SSD heat-dissipation The M.2 SSD that can be used with this device has a fast transfer speed and is therefore subject to reaching high temperatures. If the M.2 SSD does not include a heat-dissipation mechanism, attach a heat conductor, such as a heat sink, a heat transfer sheet, or both. For information on how to attach the heat conductor, refer to its manual. If you use your device without heat-dissipation parts, or the heat-dissipation parts come off during use, the M.2 SSD may overheat, and continued use may cause operation failure.

Safety warnings

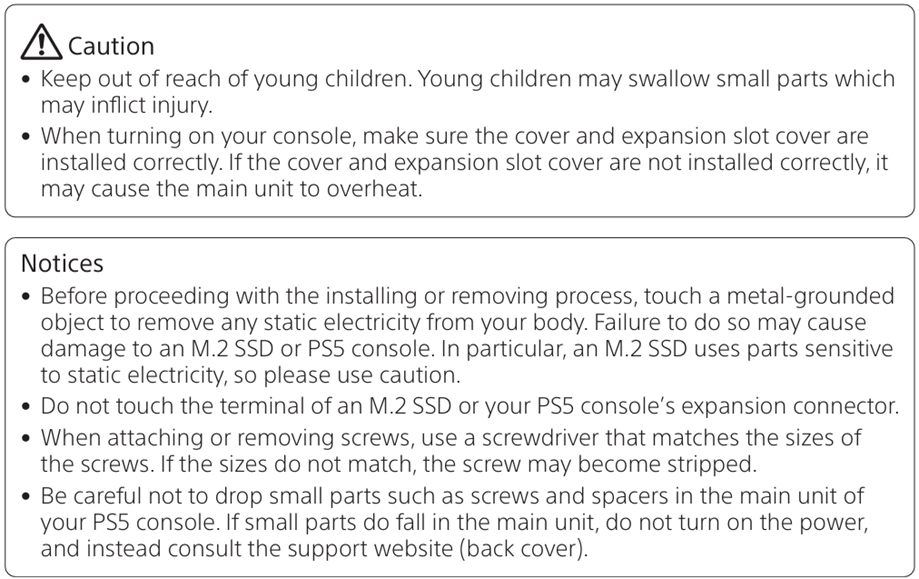

Before installing or removing an M.2 SSD, please read the following safety precautions.

Install an M.2 SSD – PlayStation 5 Slim and PlayStation 5 Pro

Place your console on a soft cloth spread over a flat surface before installing the M.2 SSD. Ensure the power is turned off, remove the AC power cord and cables, and then wait for the PS5 console to cool down.

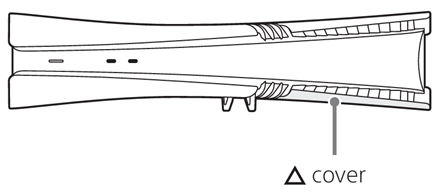

Remove the cover.

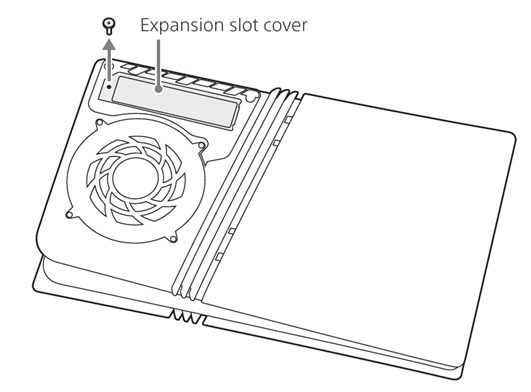

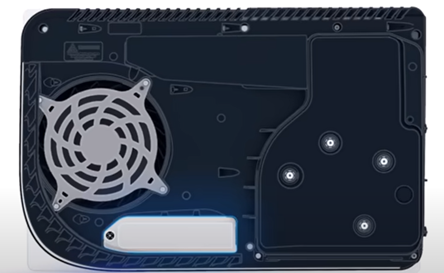

Remove the screw from the expansion slot cover and then remove the Install an M.2 SSD cover.

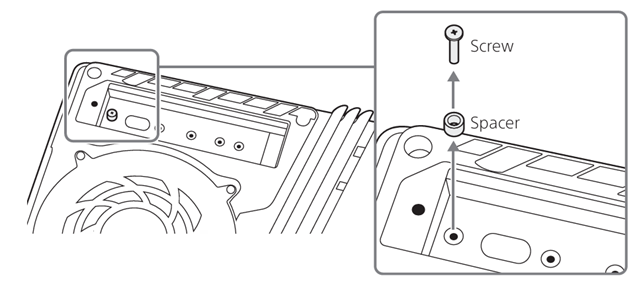

Remove the screw and spacer, and then adjust the spacer to the size of the M.2 SSD.

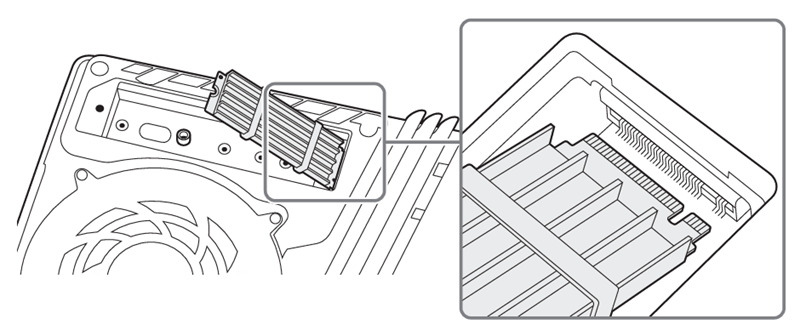

Holding the edge of the M.2 SSD, align it with the notch on the expansion connector. Tilt the M.2 SSD diagonally upward, and firmly insert it all the way into the expansion connector.
The following shows an M.2 SSD with a heat sink and heat transfer sheet attached.

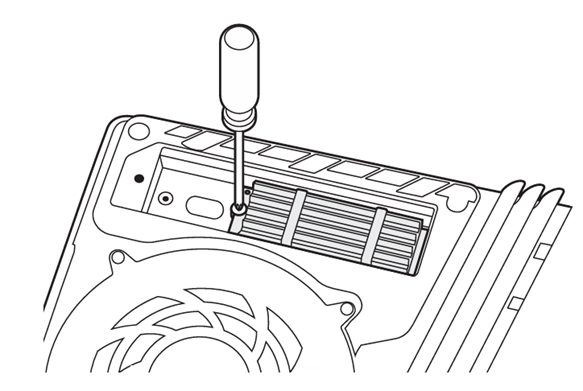

Tilt the M.2 SSD down and fasten it with the screw.
Attach the expansion slot cover and fasten the screw.
Attach the cover.
Attach the feet, connect the AC power cord and cables, and then turn on the power.

If you’re using the M.2 SSD on your console for the first time, the formatting guide appears when your PS5 console turns on. Follow the on-screen instructions and format the M.2 SSD.

Remove an M.2 SSD - PlayStation 5 Slim and PlayStation 5 Pro

Place your console on a soft cloth spread over a flat surface. You can then remove the M.2 SSD.

Remove the cover.
Remove the screw from the expansion slot cover, and then remove the cover.
Remove the fastened M.2 SSD screw.
Slightly lift up the M.2 SSD, and then hold the edge and pull diagonally upward.
Fasten the screw back on the spacer.
Attach the expansion slot cover and fasten the screw.
Attach the cover.

Install an M.2 SSD – PlayStation 5 Original model

Ensure the power is turned off, remove the AC power cord and cables, and then wait for the PS5 console to cool down. Place your console on a soft cloth spread over a flat surface before installing the M.2 SSD. Remove the base and position your PS5 console so that the PlayStation logo is facing down and the power button is facing towards you.

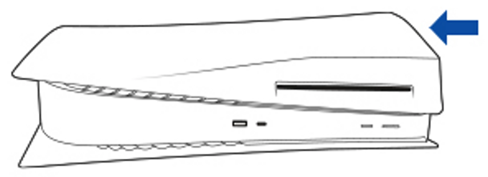

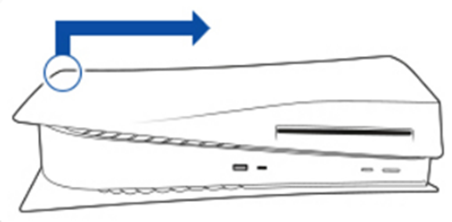

Grip the top left corner of the cover and remove it by slightly pulling up and to your right.
The cover lifts away.
Slide the cover off while still keeping your PS5 console stable.

There is a long rectangular cover over the expansion slot, secured with one screw at the top.

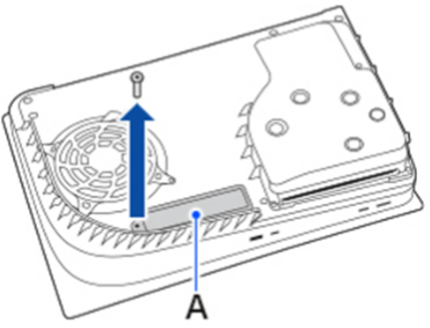

Remove the screw from the expansion slot cover (A) and then remove the cover.

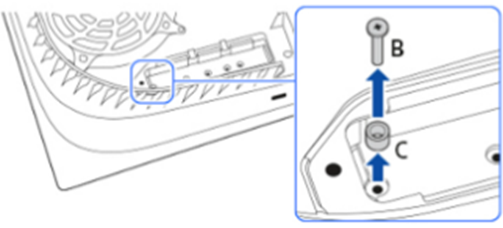

Carefully remove the screw (B). Move the spacer (C) to the groove corresponding to the size of your M.2 SSD.
Hold the edge of your M.2 SSD, align it with the notch on the expansion connector, and then starting from diagonally upward firmly insert it all the way in.
Ensure the M.2 SSD circuit board is resting flush on the spacer, without obstruction from your cooling structure. If you proceed to the next step while your M.2 SSD is incorrectly inserted or not firmly inserted all the way into the expansion connector, it may cause damage to the terminal and your PS5 console.
Tilt your M.2 SSD down and fasten it to the spacer with the screw. Make sure your cooling structure is not obstructing the screw.
Attach the expansion slot cover and fasten the screw. If the slot cover does not close properly, your cooling structure likely exceeds size requirements.

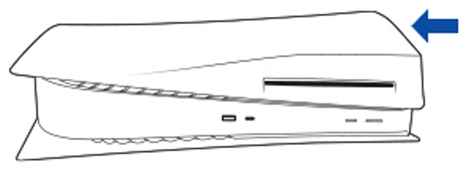

Replace the cover by positioning it slightly away (about 2 cm or 3/4 inch) from the top edge and sliding it back into place. You’ll hear a click when the cover is secured.
Connect the AC power cord, cables, and base, and then turn on the power. When your PS5 console turns on, the formatting guide appears. Follow the on-screen instructions and format your M.2 SSD*.

*Formatting isn’t required when moving an M.2 SSD between two PS5 consoles.

Remove an M.2 SSD – PlayStation 5 Original model

Grip the top left corner of the cover and remove it by slightly pulling up and to your right.
The cover lifts away.
Slide the cover off while still keeping your PS5 console stable.
There is a long rectangular cover over the expansion slot, secured with one screw at the top.
Remove the screw from the expansion slot cover (A) and then remove the cover.
Remove the M.2 SSD storage drive screws.
Slightly lift up your M.2 SSD storage drive, and then hold the edge and pull diagonally upward.
Fasten the screws back on the spacers.
Attach the expansion slot cover and fasten the screw.
Replace the cover by positioning it slightly away (about 2 cm or 3/4 inch) from the top edge and sliding it back into place. You’ll hear a click when the cover is secured.
Connect the AC power cord, cables, and base, and then turn on the power.
